Datavideo GO 650 Studio Bundle

Giới thiệu Datavideo GO 650 Studio Bundle

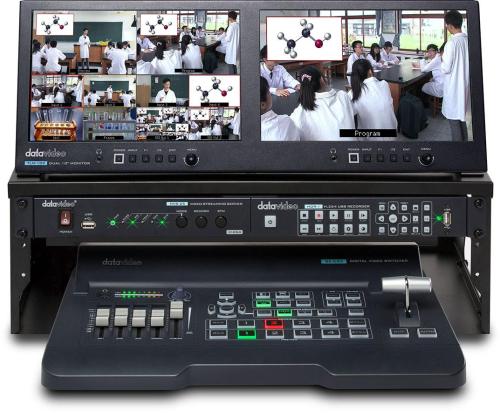

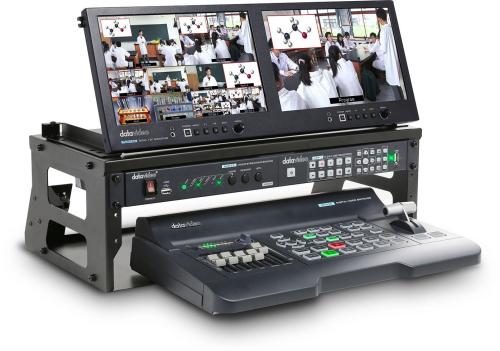

The GO 650 Studio Bundle from Datavideo includes the SE-650 HD digital video switcher, TLM-102 dual monitor, NVS-25 streaming encoder, HDR-1 H.264 USB recorder, and an HC-800 wheeled trolley-style case.



SE-650 HD 4-Channel Digital Video Switcher

Combining a four-channel HD video switcher and a 6-channel audio mixer, the Datavideo SE-650 is an all-in-one solution for live video production. Video and embedded audio can be imported using two HD-SDI and two HDMI inputs; audio can also be brought in through analog inputs. Multiple video outputs enable you to send video to multiple locations. The output section is configurable, so you can choose which output is your multiview, and which are your program outputs. Having multiple program outputs means that you can have one output recorded separately, and one output sent to a streaming server for live broadcast online.

Use the control surface to switch angles in real time, apply effects, transitions, and fades to facilitate professional production value. Additional connections for expanding your I/O options include 1/4" microphone inputs and analog RCA audio, Ethernet, tally, and USB for firmware updates.

• Any Input can be used as a frame (stills) store
• Assignable outputs: Program (with DSK), Clean Program (without DSK), Clean Preview (without DSK), Multiview
• Frame sync on each input
• Flexible mix effects processor with one upstream keyer, supporting chroma key, and linear/luma key
• One upstream PiP, supporting chroma key and luma key
• Wipe generator: 32 wipe patterns including shapes with border and softness control
• Full mix effects preview function
• Logo insertion
• XPT (Cross Point Assignment)
• Tally output
• Six-channel audio mixer
• Supports embedded audio
• Multi-language support



10" Dual IPS LCD Monitor

The 10" Dual IPS LCD Monitor from Datavideo is a rack-mounted monitoring unit designed for broadcast, video production, and A/V users. The monitors feature built-in vectorscope, waveform, and video signal converters. Each has one 3G/HD/SD-SDI input and one HDMI input, with loop-through output for both. Built-in signal cross conversion allows each monitor to use one input for display and the other for conversion. The 4 RU rackmount design offers a mounting solution for on-site monitoring, video walls, and production trucks.

• 1280 x 800 IPS panel resolution
• Dual monitor
• 4 RU rackmount
• Supports 3G-SDI and HDMI video input with loop-through output
• Column (YRGB peak), timecode, waveform, vectorscope, audio level meter, peaking, zoom, pix-to-pix, underscan, check field
• SDI/HDMI cross conversion
• Individual adjustments of brightness, contrast, color saturation, and LED backlight level for each monitor
• Color temperature adjustment
• Front panel headphone jacks
• User-definable function buttons (F1, F2)



NVS-25 H.264 Video Streaming Server

Stream HD or SD video to the web with Datavideo's NVS-25 H.264 Video Streaming Server. The NVS-25 encodes incoming video to H.264 in real time and can send it to stream on the web while simultaneously recording to a USB drive. Having the recording is good for content creators who want their video to be available on-demand after the live stream is over. For ease of use the NVS-25 uses a simple web-based user interface (UI) that can be accessed from a standard web browser. The UI can configure the settings and also upgrade firmware from the web.

The rear panel has the input section and the network output. The NVS-25 can accept video from SDI, HDMI, or Composite sources. Audio can be routed into the stream from embedded audio in SDI or HDMI feeds, or from dedicated XLR and RCA audio inputs. Scaling and deinterlacing can be accomplished on any video input. Processing is done pre-encoding for better quality video. The front panel contains the status LEDs, the power switch, and a USB port. The USB port can output encoded video to a hard drive or flash drive.

Features

H.264

High-quality HD / SD H.264 network streaming; H.264 / AVC video CODEC, up to High Profile Level 4.0

Embedded or External Audio

Audio inputs: select embedded or external audio source

GOP Structure Support

Supports 3 types of GOP structure: IBBP, IPPP and IBP

Deinterlacing Support

Supports de-interlace video streaming for progressive output

Easy-to-Use Web User Interface

Web UI for system configuration and FW upgrade

Front Panel Button Control

Front panel control for recording and streaming

Video Scaler

Flexible video scaler presets for streaming out

USB Storage Support

Attach USB storage device (Up to 1TB storage device)



HDR-1 Standalone H.264 Recorder and Player

Record and playback HD videos in the ubiquitous H.264 format without a PC using the Datavideo HDR-1 Standalone H.264 Recorder and Player. To get started, plug in an NTFS-formatted USB flash drive, and the HDR-1 will automatically set itself up to record or playback video to/from the drive. Whether your productions have HD or SD equipment, the HDR-1 can handle it. Resolutions of up to 1080p at 30fps are supported for recording, and bit-rates of up to 20 Mbps ensure that the recordings retain detail.

Once your video is recorded, you can remove the flash drive and distribute the video, or move it to a hard drive for archiving, sharing directly to the web (no transcoding required for most hosting services), or editing later. Basic editing maneuvers, such as cutting unwanted segments can be made inside the HDR-1. If someone is actively operating the HDR-1, the pause button can temporarily stop the recording during a break in the event while keeping the recording in a single file, removing extra post-event editing steps.

Existing H.264 videos can be loaded onto a flash drive for playback on the HDR-1. Connect an HDMI display and use the front-panel controls or software control via RS-232 to navigate files and control playback. RS-232 and GPI can also control recording start/stop with separately available hardware as part of a larger A/V setup.

• Capture HD video up to 1080p30
• Video pass-through
• Records and plays back standard MP4 files (H.264+AAC)
• Standard USB flash drives for recording media
• Does not require a PC for operation
• 3-20 Mbps bit-rate options (resolution dependent)
• Basic integrated editing functionality
• Supports 3D video formats

Bộ sản phẩm bao gồm

1 x SE-650, 1 x HDR-1, 1 x NVS-25, 1 x TLM-102, 1 x Carrying Case, 1 x Rack kit, 1 x AD Switch DC 12V, 1 x AC Cord, 3 x HDMI Cable, 2 x BNC Cable, 1 x Ethernet Cable

Thông số chi tiết sản phẩm

Thương hiệu: Datavideo
SKU: 214086948_VNAMZ-268189851
Dòng sản phẩm: GO 650 Studio
Loại bảo hành: Bảo hành bởi trung tâm trong nước được hãng ủy quyền
Thời gian bảo hành: 12 tháng
