Datavideo SE-1200 6-Channel HD Digital Video Switcher (SE-1200 + RMC-260)

Giới thiệu Datavideo SE-1200 6-Channel HD Digital Video Switcher (SE-1200 + RMC-260)

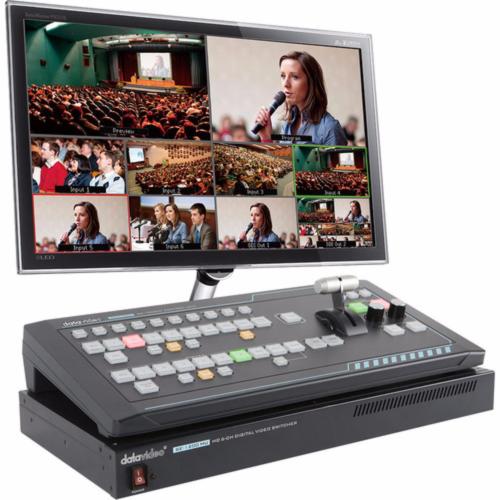

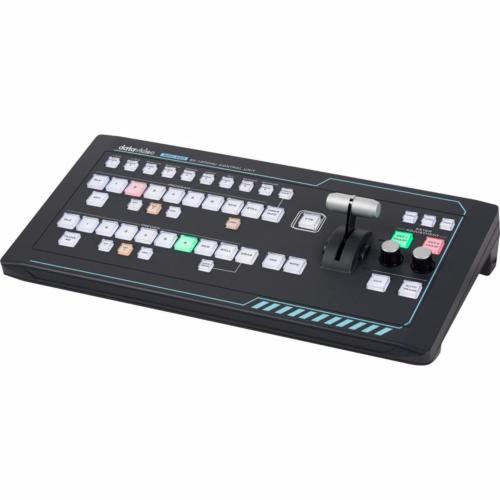

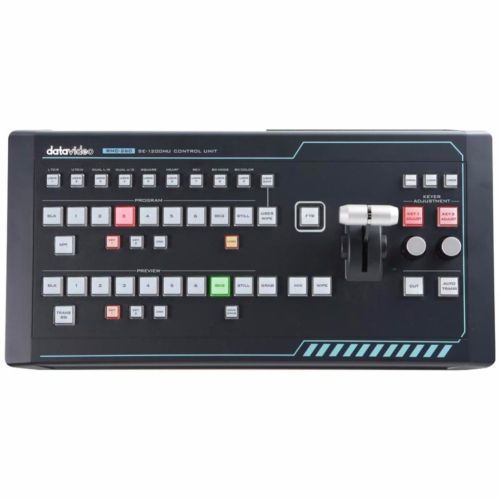

The Datavideo SE-1200 Bundle is comprised of the SE-1200MU 6-Input HD Video Switcher plus the RMC-260 Controller. The two components of this bundle enable you to control multiple video sources and outputs by using an ergonomically-designed switcher. Employed in lieu of computer-based control, the RMC-260 Controller brings the solidity of a tactile interface to your use of the SE-1200MU 6-Input Switcher. The controller features clearly-labeled, LED-lit buttons and knobs, XPT (cross-point assignment), a sloped interface, and a T-bar lever. The SE-1200MU 6-Input Switcher features four HD-SDI and two HDMI inputs, two HD-SDI outputs, two assignable HDMI multi-view outputs, and chroma and luma key functions.

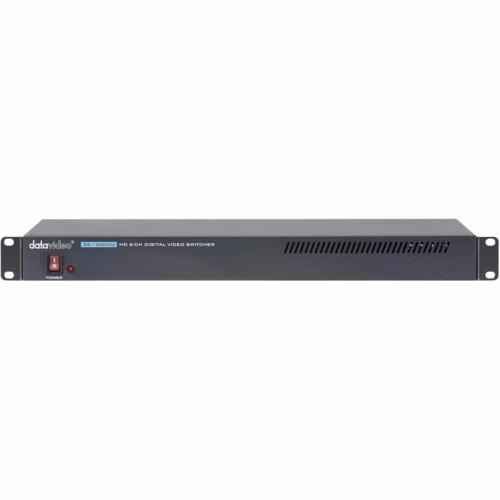

The compact SE-1200MU switcher can be rack-mounted (1 RU), or it can fit neatly under the RMC-260 Controller in situations where space is limited.

At only 1RU in height, the Datavideo SE-1200MU 6 Input HD Digital Video Switcher is a small, portable, computer controlled switcher. Designed to be controlled using the front panel buttons, RS-422, or via a computer. An optional monitor is required to view your output. The unit supports 1080i and 720p video via 4 HD-SDI inputs and 2 HDMI inputs, with the HDMI inputs supporting computer signals.

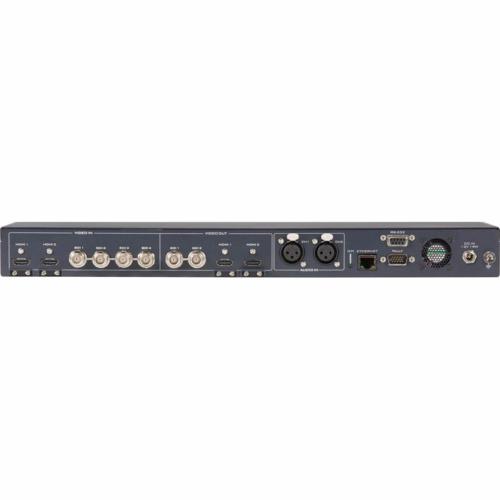

The SE-1200MU has 2 HD-SDI outputs and 2 assignable HDMI multi-view outputs. In terms of audio, there are 2 XLR mono inputs (1 stereo pair) and the switcher supports audio embedding of analog audio. The switcher supports Luma and linear keying with 2 downstream keyers, and has built-in effects including fade to black, straight cut, and 32 wipes with border. The internal frame synchronizer allows you to use consumer cameras with HDMI output and computers as input sources while making straight cuts without having the image jump, or requiring a fade to black. As you would expect with a switcher, this unit supports Tally indication on the multi-view output.

• 6-Input high definition switcher
• 1RU rackmountable processing unit
• 4x HD-SDI and 2x HDMI inputs
• Re-configurable inputs
• 2x HD-SDI outputs
• 2x Assignable HDMI outputs for dual multi-view screens
• 32 Wipe effects with border options
• Multi-view output
• Cross point assignment
• PC remote control
• Tally output
• 12 VDC operation voltage

Bộ sản phẩm bao gồm

1x Datavideo SE-1200 Main Unit, 1x AD Switch DC 12V, 1x Utility CD w/ CD Bag, 1 x Datavideo RMC-260, 1 x AD Switch DC 12V, 1 x DB9P TO DB9P Cable

Thông số chi tiết sản phẩm

Thương hiệu: Datavideo
SKU: DA590ELAAPE9JGVNAMZ-53002066
Dòng sản phẩm: SE-1200 (SE-1200MU+RMC-260)
Loại bảo hành: Bảo hành bởi trung tâm trong nước được hãng ủy quyền
Thời gian bảo hành: 12 tháng
